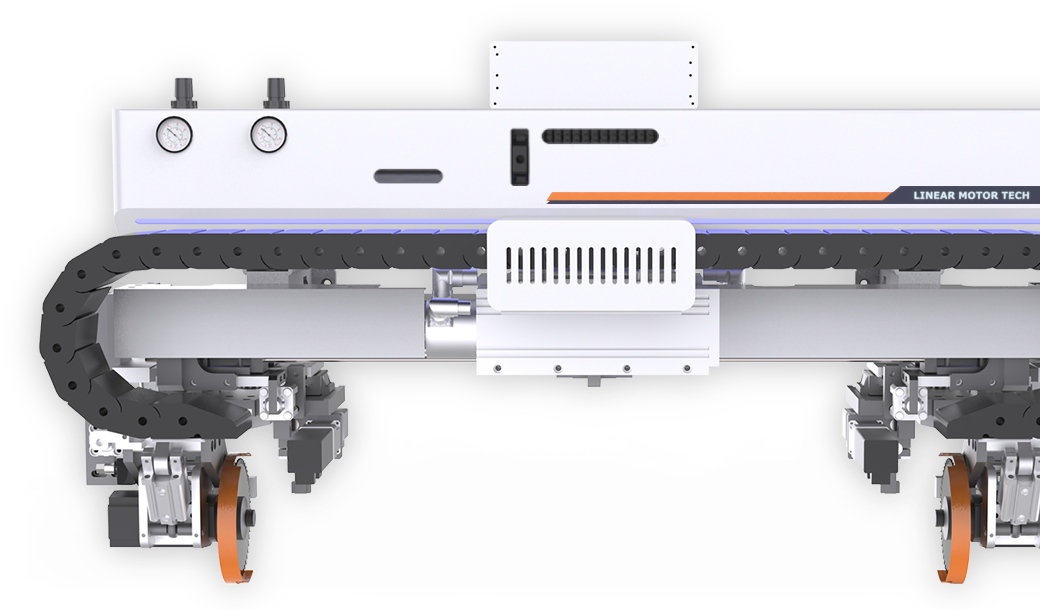

Precision chain links, machined from special alloy steel, feature high dimensional accuracy and strong deformation resistance, ensuring stability and precision during high-speed operation.

Automatic switching of multi-specification edge bands, easy to operate, saving time and effort.

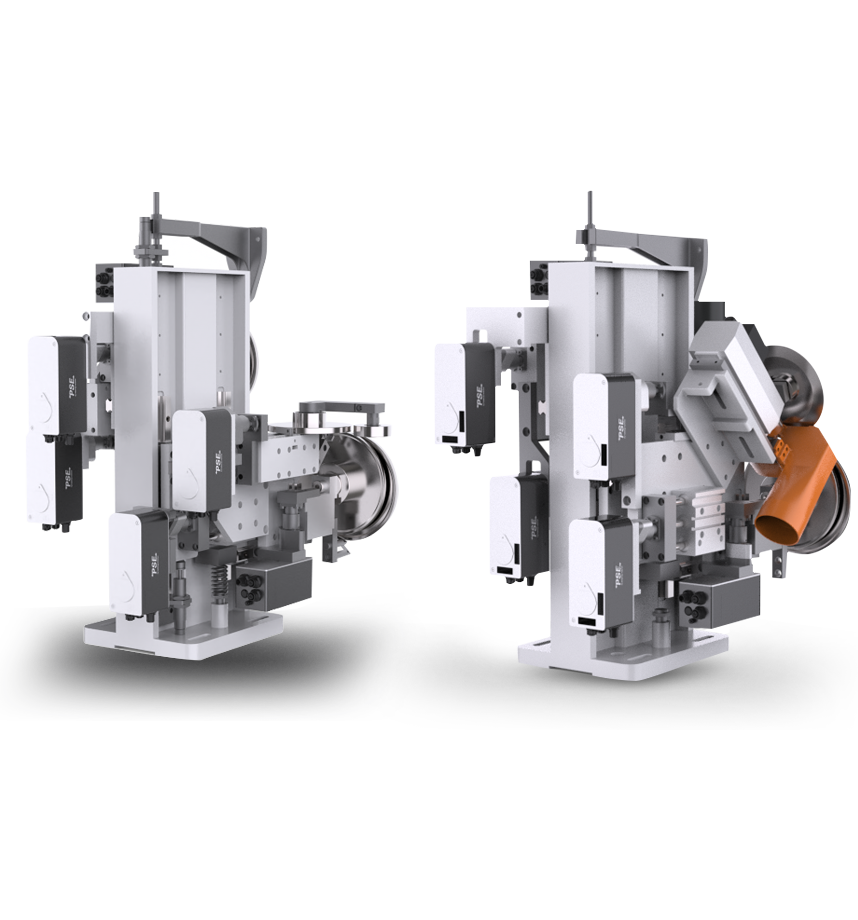

Independent drive motors intelligently adjust the pressure wheel position according to the thickness of the edge band, ensuring more reliable edge banding and improving quality.

EVA+dual-color PUR/laser+dual-color PUR/2 sets of EVA/2 sets of dual-color PUR

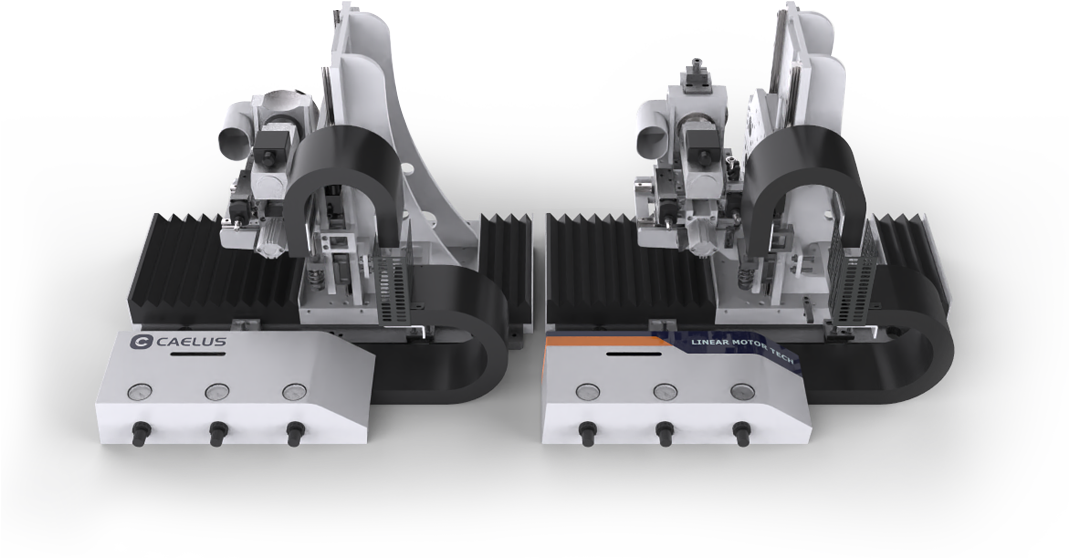

Ultra-high-speed horizontal trimming at 42m/min, perfectly solving the panel bumping issue.

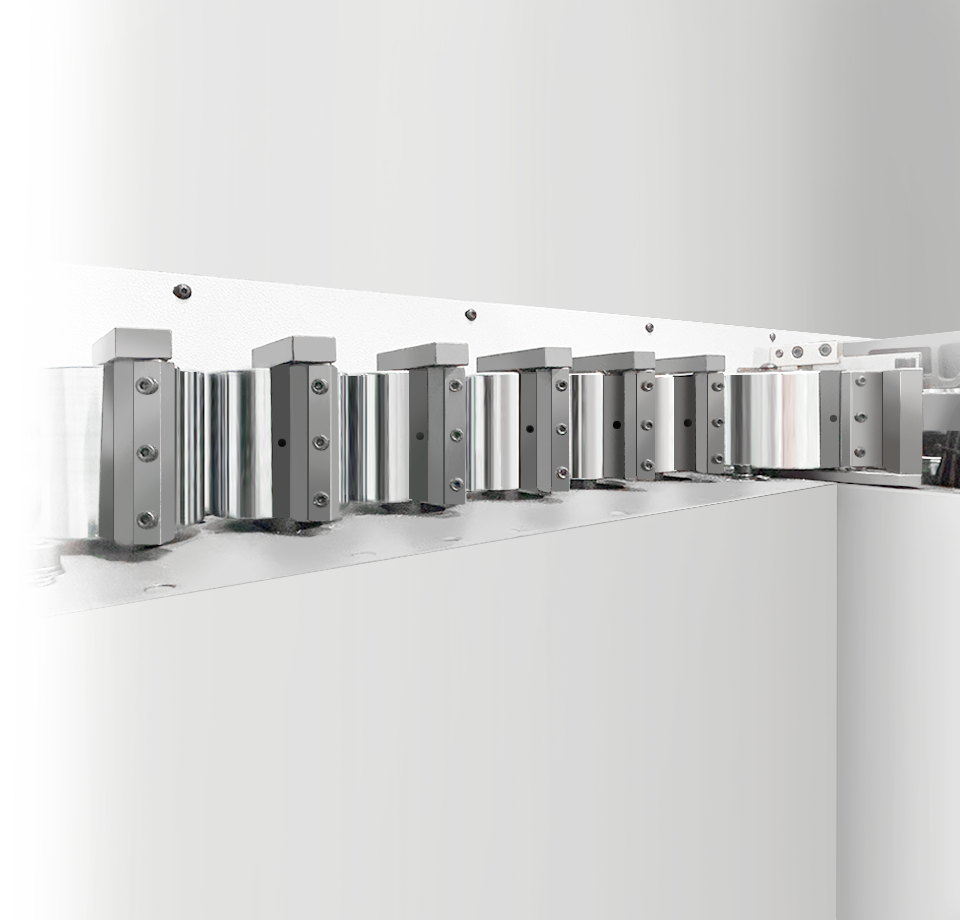

Equipped with dual cushioning wheels to reduce impact and enhance edge banding quality; intelligent positioning motors automatically adjust the tool position based on edge band thickness, allowing for tool-free switching of edge bands.

Ultra-high-speed and stable radius processing at 36m/min, with the ability to switch between two different edge band thicknesses.

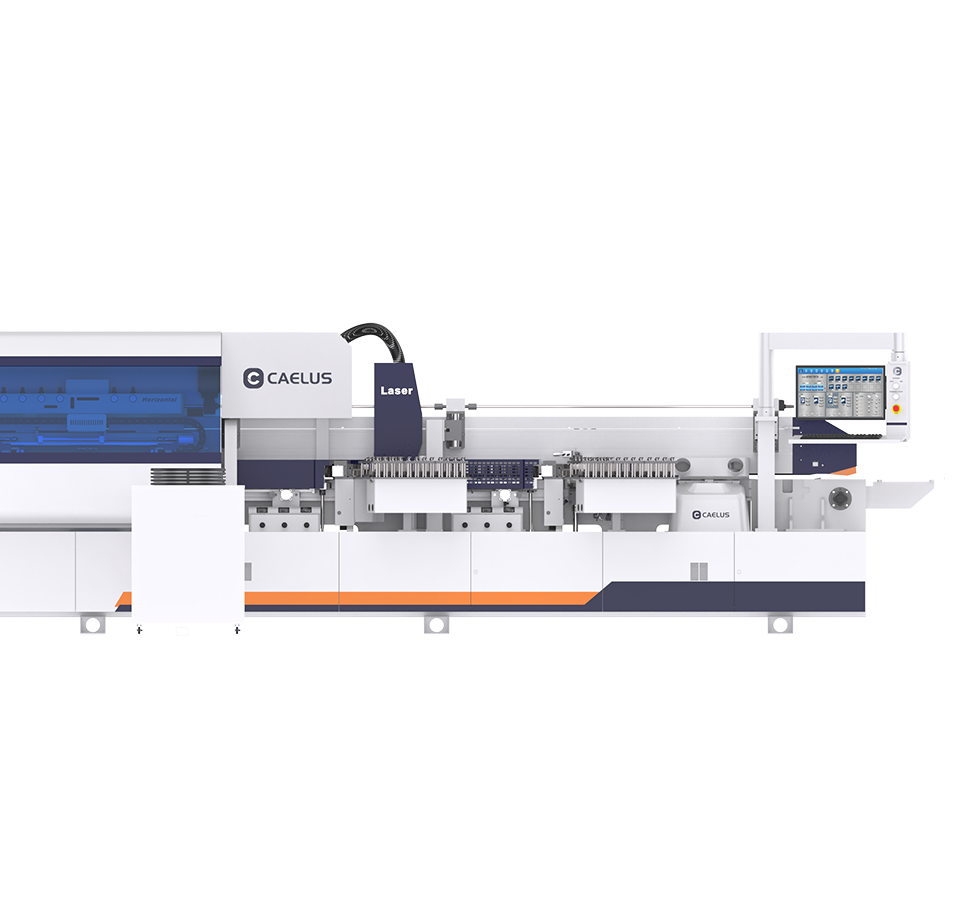

Dimensions                            12012 (L)*1169 (W)*1960 (H)mm
Weight                                    ~ 7500kg
Feeding Speed                      32-36-42m/min
Edge band thickness           0.4-3mm
Panel thickness                     9-60mm
Minimum board width        ≥120mm
Minimum board length       ≥240mm
