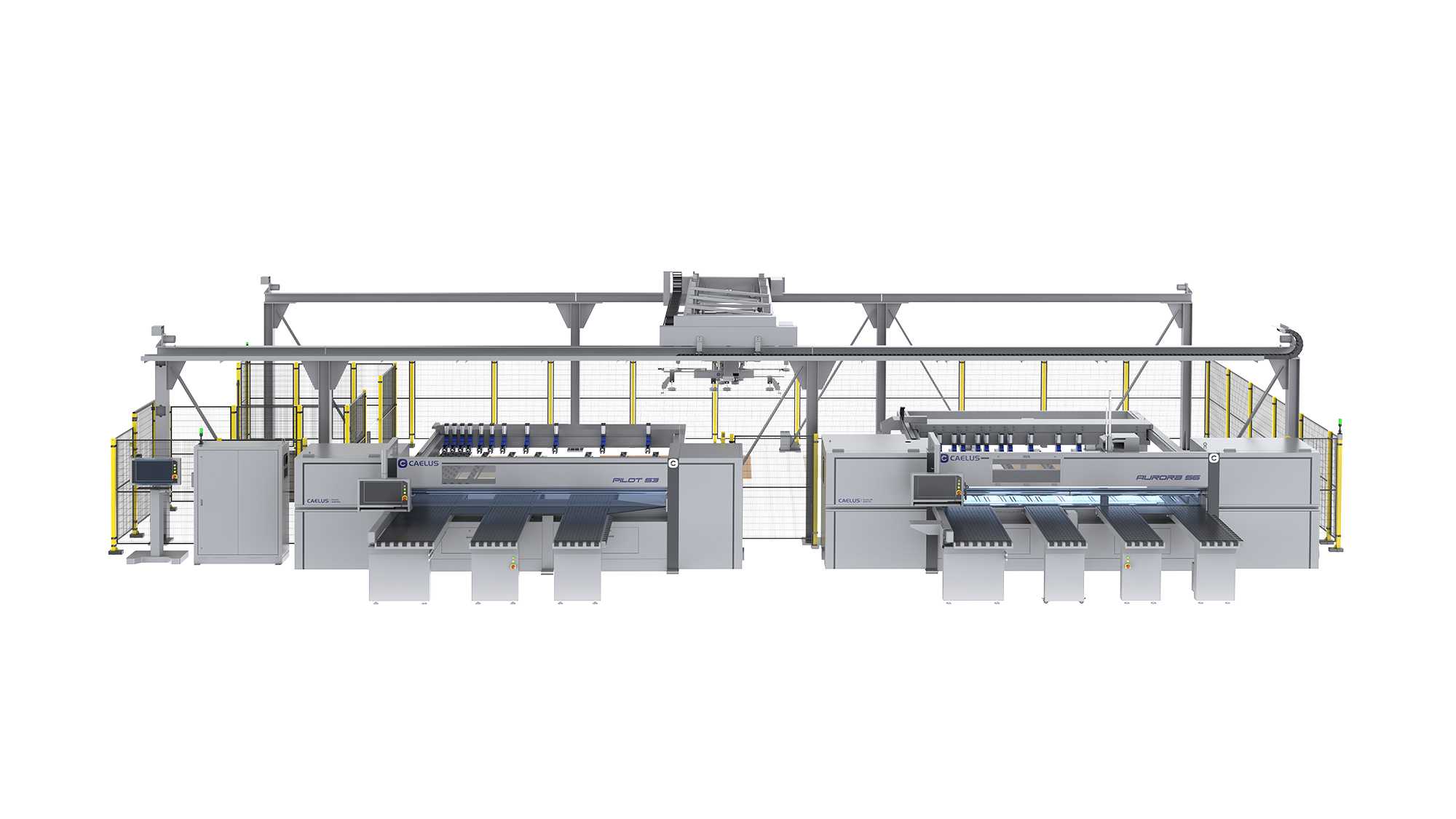

StoreTek 5 Storage System

Intelligent sorting, dynamic buffering, autonomous scheduling, and seamless coordination between the storage system and the panel saw. It offers flexible combination, and can be paired with front-loading panel saws, rear-loading panel saws, flexible cutting cell and CNC. The size of the storage can be customized flexibly.

Optional Features:

  • Range size
  • Travel path size
  • Infeed unit
  • Outfeed unit
  • Rainbow stack unit
  • Ground steel support

Product Details

Intelligent sorting, dynamic buffering, autonomous scheduling, and seamless coordination between thestorage system and the panel saw. lt offers flexible combination, and can be paired with front-loading panelsaws, rear-lo ading panel saws, flexible cutting cell and CNc. The size ofthe storage can be customized flexibly.

Load Monitoring System, smart detection of plate adhesion, overload prevention, plate detaching module-ensures precise separation of adhered plates.

Blickle silent wheels, low rolling resistance, high dynamic load capacity, Ultra-Wear-Resistant and high tensile strength.



  • Smart positioning: The multiple categories of panel specifications can be stored, retrieval automatically.
  • Proactive material preparation logic: intelligent bufering according to the production plan, shortening thewaiting time.
  • Saving labor costs: Automaticinfeed and outfeed, reducing labor force.

Lebus drum technology effectively prevents the wire rope from crossing and tangling,ensures smoother operation, and significantly extends the service life of the wire rope.

Schmalz suction system, individual controlled suction cups, adapt to the board dimension automatically.

StoreTek 5 Technical Data

Storage width (range)

5m - 12m

Storage length (travel path)

10m - 50m

Workpiece length

2000mm - 4200mm

Workpiece width

800mm - 2200mm

Workpiece thickness Min.

3mm

Panel weight Max.

250kg

Stack height

2100mm

Speed of carriage

80m/min

Speed of Bridge

60m/min

Speed lifting drive Max.

45m/min

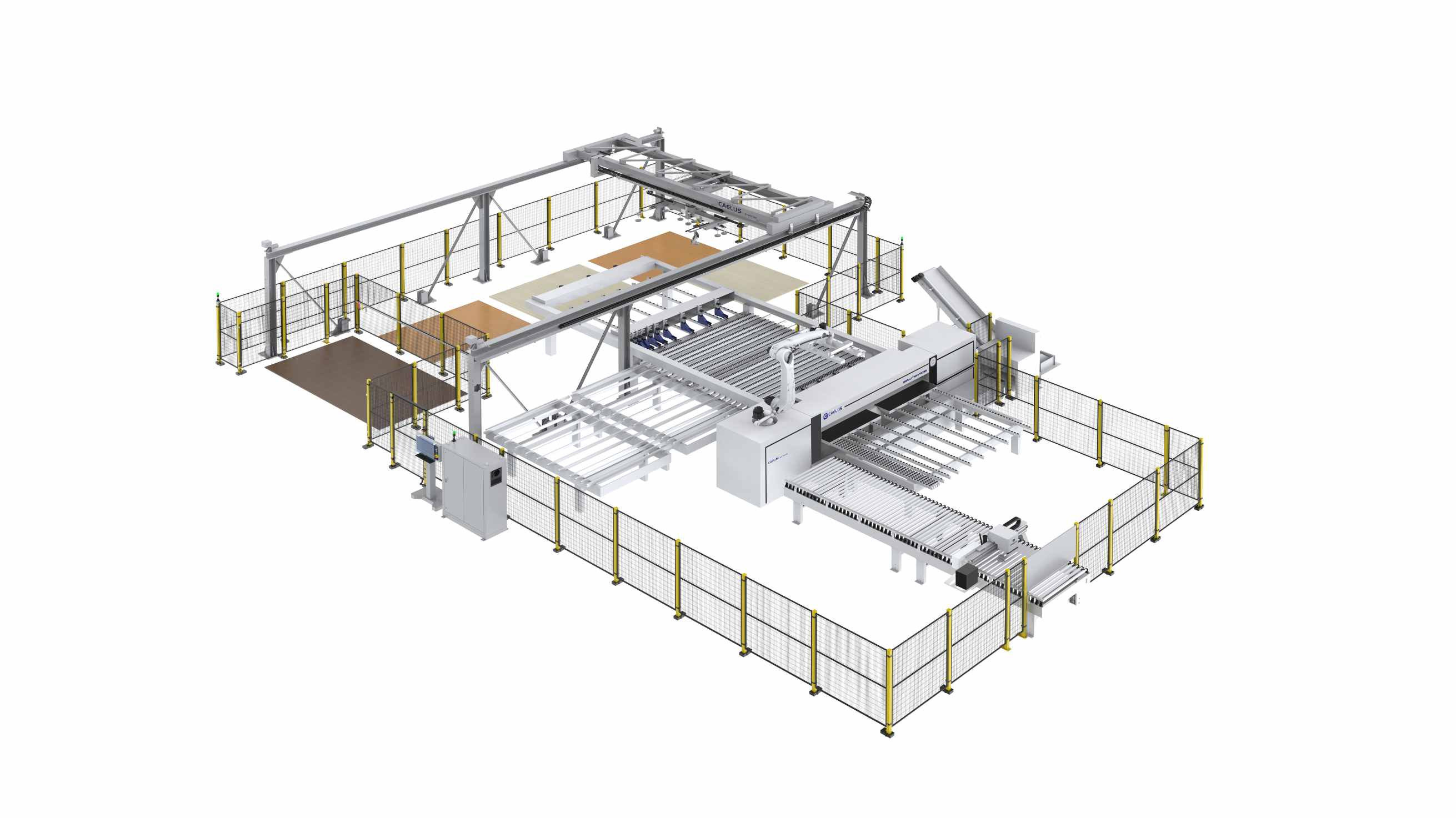

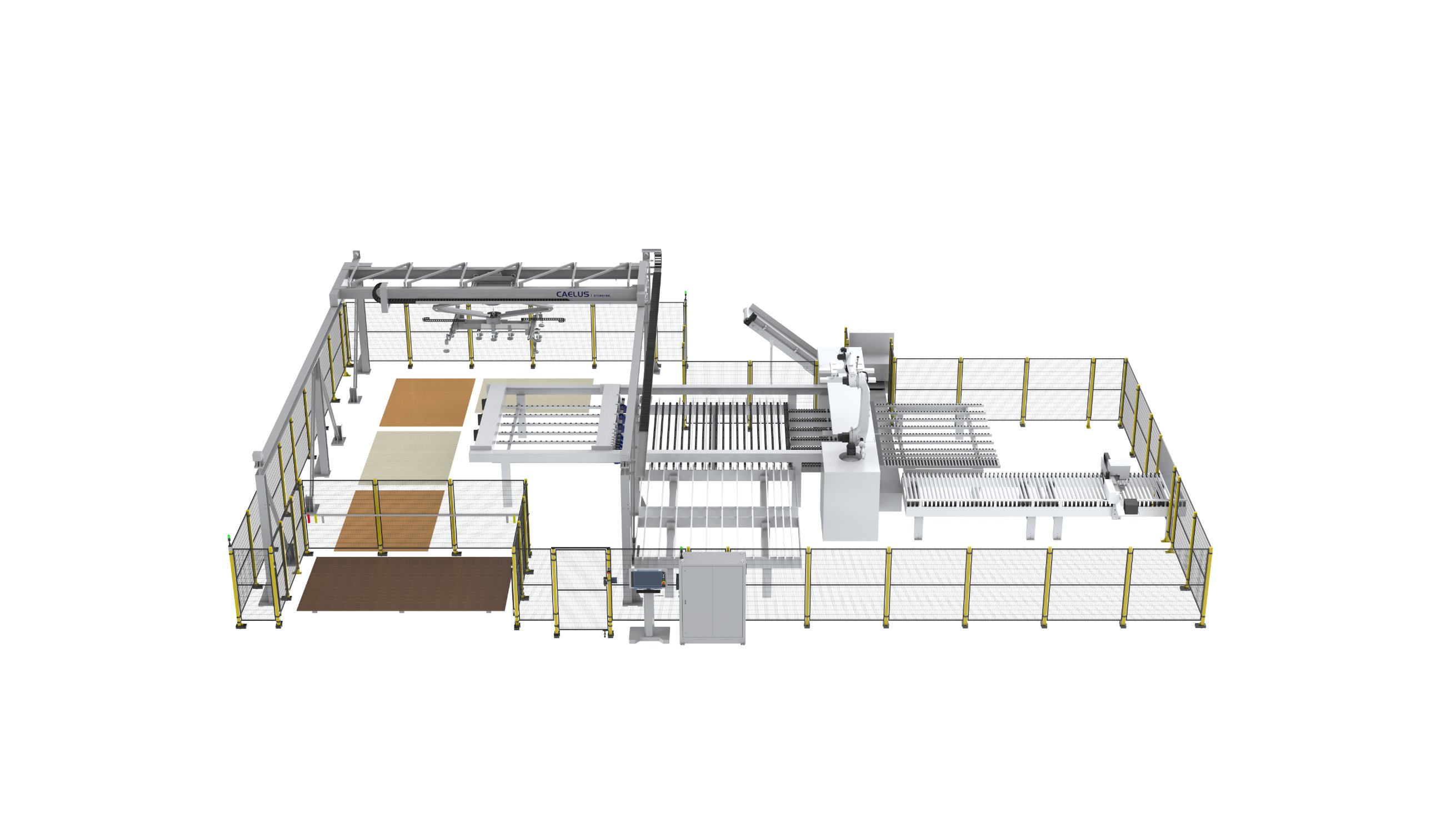

CAELUS StoreTek 5 Storage System automates panel sorting, storage and retrieval for furniture production. Intelligent preparation and dynamic buffering coordinate material supply with cutting. Load monitoring, panel separation and adaptive suction cups support controlled pickup, while automatic infeed and outfeed reduce manual handling. Customizable storage dimensions and travel paths suit front-loading and rear-loading panel saws, flexible cutting cells and CNC machines, helping factories maintain a smoother production workflow.



Key Advantages
1. Smart Material Preparation: Prepares panels according to production plans, using intelligent buffering to help reduce panel saw waiting time.
2. Monitored Panel Separation: Load monitoring, adhesion detection and a panel separation module support controlled pickup of boards that stick together.
3. Adaptive Vacuum Cup System: Individually controlled Schmalz suction cups automatically adapt to board dimensions, supporting controlled panel handling.
4. Automated Infeed & Outfeed: Automatic loading and unloading reduce repetitive lifting and manual transfers, with units configured for the production workflow.
5. Flexible Layout & Saw Link: Customizable storage dimensions and travel paths support configurations with front-loading or rear-loading panel saws, flexible cutting cells and CNC machines.



FAQ

Q1. How can I reduce panel saw downtime caused by waiting for materials?
A: StoreTek 5 prepares panels according to the production plan and uses dynamic buffering to coordinate material supply with cutting. This helps reduce delays caused by manual searching and material preparation.



Q2. How does StoreTek 5 handle panels that stick together during pickup?
A: StoreTek 5 combines load monitoring, panel adhesion detection, overload prevention and a panel separation module to support the separation of adhered boards. For materials prone to sticking, sample testing should verify separation performance under actual storage and production conditions.



Q3. How can I reduce surface damage during automated panel handling?
A: StoreTek 5 uses individually controlled Schmalz suction cups that automatically adapt to board dimensions. Reducing manual transfers can also limit unnecessary handling. For sensitive finishes, verify suction contact, panel cleanliness and pickup settings with actual samples before production.



Q4. What panel sizes, thicknesses and weights can StoreTek 5 handle?
A: Published specifications cover panels 2,000–4,200 mm long and 800–2,200 mm wide, with a minimum thickness of 3 mm and a maximum weight of 250 kg. These limits do not establish compatibility with every material. Confirm surface condition, rigidity and thin-panel handling requirements for your boards.



Q5. Can StoreTek 5 connect to my existing panel saw or CNC machine?
A: StoreTek 5 supports configurations with front-loading and rear-loading panel saws, flexible cutting cells and CNC machines. Existing equipment requires a project-specific assessment of loading arrangements, control interfaces and layout. Provide the machine model and factory drawing when requesting an integration proposal.
