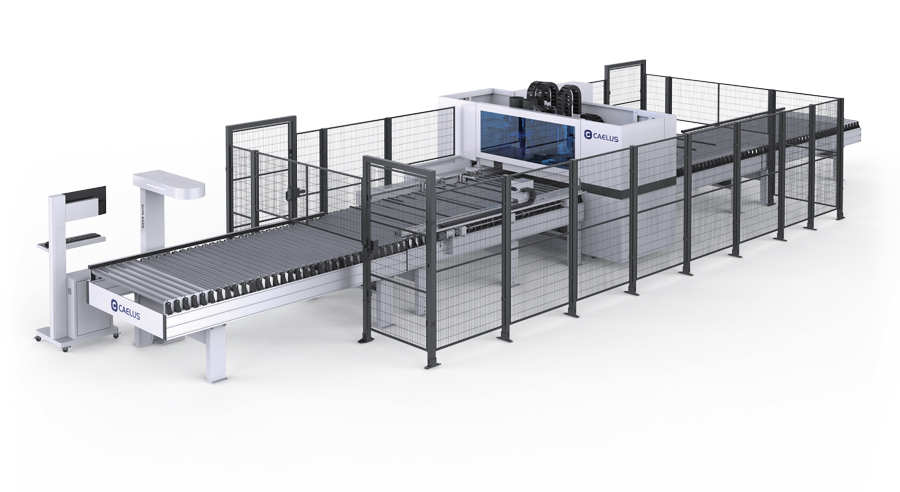

D5A CNC Automated 6-Sided Drilling Center

A core model of automated single-channel 6-sided drilling machine with dual drilling heads for collaborative processing. Integrates drilling, grooving, milling and invisible part processing, supports fully automatic line connection and standalone operation. Easy to operate, space-saving and high-precision, suitable for large-scale processing and automatic line upgrading of small and medium-sized furniture factories.

Product Details

Standard Functions:



Panel Saw‘s Intelligent Sawing Control System
1. Intelligent Scanning & Error Handling: 600mm long-range barcode scanning; auto-return for misreads; auto-reject & alarm for abnormal panels to ensure uninterrupted production.



Panel Saw Heavy-Duty Machine Frame
2. High-Efficiency Dual Drilling System: 2+1 drilling heads, 53 tools, φ35mm max drill; 6-sided & horizontal drilling, PTP-level efficiency.
Panel Saw's Quick Start Device
3. High-Speed Precision Clamping: Upgraded double gripper with long guide rail; speed up to 140m/min, stroke 5.5m; auto hole recognition & one‑time panel handling to shorten cycle time.
Panel Saw's Quick Start Device
4. Front-In & Back-Out Continuous Flow: Front loading, rear unloading; seamless processing with minimal standby; directly connectable to automatic production lines.
Panel Saw's Smart Saw Carriage Positioning System
5. Visual Intelligent Control: Visual operation; supports CAD/CAM, DXF/MPR/XML; path simulation, real-time production stats & accurate time prediction.
Panel Saw‘s Main Saw Servo Elevation
6. High-Precision Stable Processing: Air flotation table; auto clamping; positioning tolerance ≤ 0.3mm.



Panel Saw's Festo Pneumatic Unit
7. Flexible & Easy Line Integration: Quick-connect, stable conveying; min. panel 200mm×50mm.
Panel Saw's 22kW PermanentMagnet Synchronous Drive
8. Clean & Eco-Friendly Design: Bottom dust collection, 30m/s air speed; efficient dust removal.




Optional Features:

Panel Saw's Customized Worktables Size
1. Grooving Function (Optional): With grooving saw blade; X-range 55–880mm; saw φ120mm×6mm, max depth 20mm; left/right saws on both sides of drilling head.



Panel Saw‘s Plastic Cutting Module
2. Two-Side Aggregate (Custom Optional): Supports grooving saw, lamello, Lecco cutter for side processing; max tool length ≤ 50mm.

Technical Parameters – Full Line Operation

Panel length

200-2800mm

Panel width

50-1220mm(≤200mm only Length side infeed)

Panel thickness

10-60mm

Panel unevenness

≤0.3mm

Working pressure

0.6MPa

Working height

950mm

Speed

70m/min

Fence height

1,800mm

Size (L*W)

13,140mm*4,340mm

CAELUS D5A is an automated CNC center for panel-furniture components, designed for digitally assigned multi-surface drilling and routing. Its flexible standalone or line-connected operation helps cabinet, wardrobe and office-furniture producers manage changing orders with less manual work. By reducing panel re-referencing, wrong-program risks, labor-intensive handling and assembly mismatches, D5A CNC Automated 6-Sided Drilling Center supports repeatable hardware positioning and a steadier production flow for growing factories.



Key Advantages
1. Shorter Order Lead Times: Reduce transfers between separate drilling steps, helping custom furniture factories move mixed orders to assembly with fewer production delays.
2. More Consistent Assembly Results: Help keep hardware holes aligned across repeat panels, reducing fitting adjustments and rework caused by inconsistent positioning.
3. High-Mix Production Flexibility: Handle changing panel dimensions and hole patterns without relying on fixed manual templates, supporting batch-one and small-batch orders.
4. Lower Operator Workload: Reduce repetitive lifting, turning and rechecking so operators can focus more on job verification and production coordination.
5. A Practical Automation Upgrade: Improve the drilling stage as a standalone investment while leaving room to connect with cutting, edge banding and material-handling systems as demand grows.



FAQ
Q1. Can the D5A CNC Automated 6-Sided Drilling Center process panels without manual flipping?
A: D5A is designed for six-sided and horizontal drilling with front loading and rear unloading. It reduces manual turning and repeated repositioning, while actual cycle time depends on panel size, hole pattern, tooling and material.
Q2. What panel sizes can the D5A CNC Automated 6-Sided Drilling Center handle?
A: The published range is 200 to 2800 mm in length, 50 to 1220 mm in width and 10 to 60 mm in thickness. Panel unevenness should be no more than 0.3 mm.CAELUS D5A
Q3. Is D5A suitable for a small or medium-sized furniture factory?
A: It can operate independently or connect with an automated production line, making it suitable for factories upgrading from manual drilling. Buyers should confirm floor space, material flow, air supply and dust extraction before installation.
Q4. Can D5A work with my furniture design software?
A: The machine supports CAD/CAM workflows and DXF, MPR and XML files. It is still important to test sample files from your own software and confirm postprocessor and data-mapping requirements.
Q5. What materials can a six-sided CNC drilling center process?
A: Typical applications include MDF, particleboard, plywood and laminated furniture panels. Actual performance depends on density, surface coating, thickness and tooling, so a sample test is recommended before purchase.
