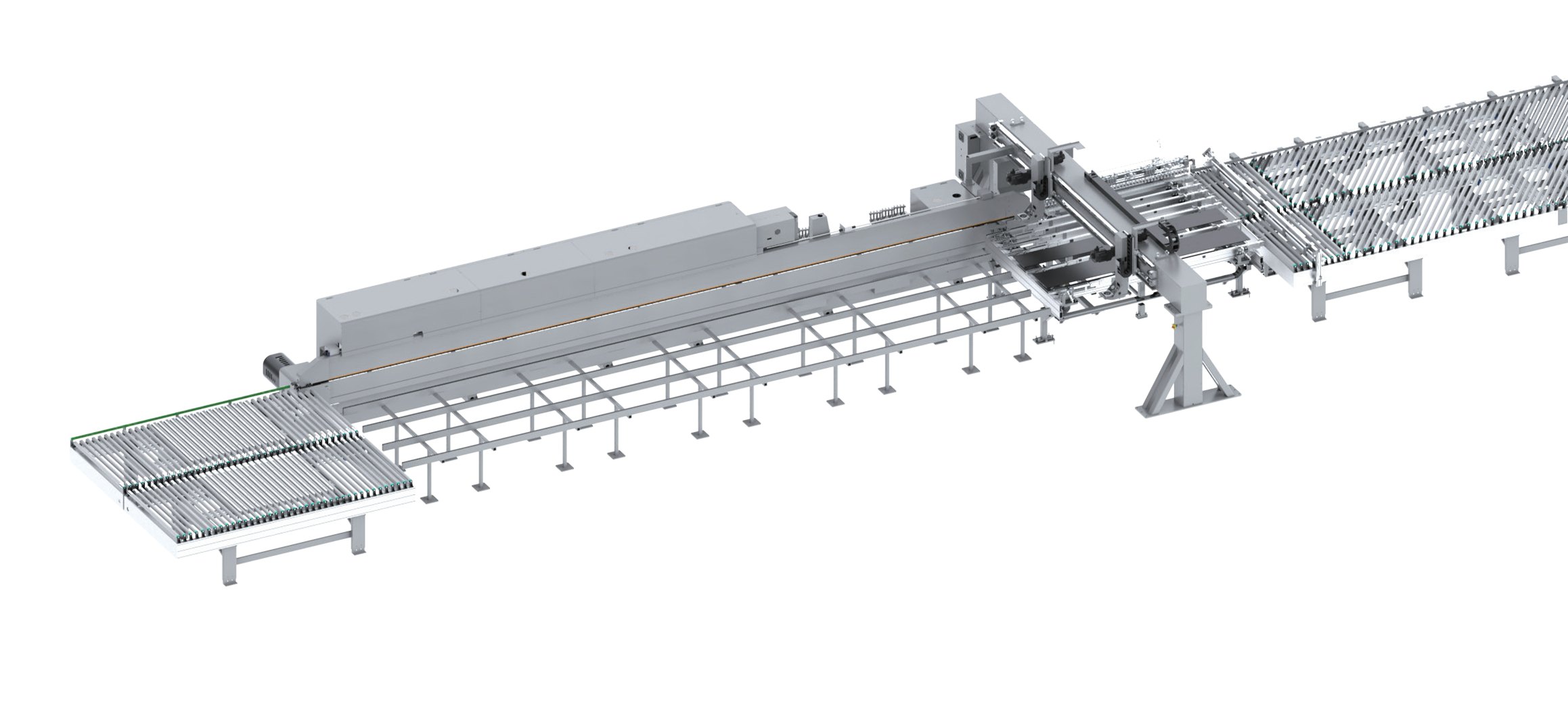

Elevating edge-banding excellence with submillimeter-level precision, this system integrates advancedtechnologies including high-speed intelligent edge banding, and automatic outrigger sizing system, ahigh-efficiency circulation system. The linear motor-driven outrigger sizing system ensures extremely highparallelism on the long edges of the workpieces. The infeed system, synchronized to the edge bandingmachine's 36m/min feed speed, guarantees high perpendicularity during short-edge processing. Equippedwith high-guality roller, a high-speed roller conveyor, and a gantry side pusher system, it significantlyboosts efficiency and production capacity across the entire line. The intelligent production line controlsvstem facilitates automatic plate recognition, realtime production data management, and seamless dataintegration, streamlining operational workflows. Automated workpiece dimension measurement technologyprevents manual feeding errors and ensures equipment safety.
Core Highlights
- 36m/min high infeed speed: industry-leading operational efficiency with a 30% production capacity enhancement
- Intelligent precision work solution: linear motor-driven outrigger sizing system + high-precision servo infeed system
- High-speed gantry: 150m/min high-speed gantry can be applied to the transportation and spacing with small workpiece
- Automated production line: High-speed roller conveyor + single-person operation, reducing production costs • Flexible adaptation: can process workpieces of various sizes
Core Units
Infeeding System CG12
Outrigger Sizing System CM12
Gantry Circulation System CL40
Gantry Side Pusher System CL28RD
1. Intelligent Feeding System
Air Cushion Table CA16L
- phenolic board + multi-chamber design, ensuring uniform air flotation and accommodating various dimensions of workpiece support
- Integrate an internally mounted blower to effectively minimize operational noise
Roller Conveyor CT85/32X
- Angled roller conveyor achieves autonomous edgealignment
- select high-quality rollers, ensuring smooth panel conveyance
- E-stop system
2. Precision Work Unit
Infeed System CG12
- High-load servo drive + precise linear guided rail for workpiece pushing
- High-precision pusher and clamping device, correcting the posture of the workpiece when it enters the edge banding machine
- With position close-loop servo control, the premilling amount is precise for ensuring the workpiece
Outrigger Sizing System CM12
- Equipped with precision linear guided rails for accurate positioning, maintaining the reference posture during milling operations
- Utilizes linear servo motor for high-speed and high-precision, ensuring precise workpiece dimensions
- The outrigger milling cutter aligns with the joint trimming unit of the edge banding machine to suppress deflection during milling
3. Edge Banding Core Equipment
High-speed Intelligent Edge Banding Machine E8x
- A wide range of modular units
- Equipped with the full servo positioning system
4. Automatic Outfeeding and Circulation System
Gantry Circulation System CL40
- 150m/min High-speed movement, reducing the waiting time for workpieces.
- Equipped with a heavy-loaded servo motor plus precision linear guided rails for high-speed, high-precision, ensuring accurate grasping and releasing of the workpieces.
- High-quality suction cups, suitable for different-sized workpieces.
Roller Conveyor CT37
- Select high-quality rollers, ensuringsmooth panelconveyance.
- Equipped with a liftingmechanism, reducingthewaiting time for workpieces.
- Modular design, adaptable to various factorylayouts.
Whole Line Technical Data
|
Parameters
|
Values
|
Advantage
|
|---|---|---|
|
Maximum part size
|
2800mm*1200mm
|
Large workpiece processing
|
|
Minimum part size
|
240mm*240mm
|
Agile small-order adaptation
|
|
Feed speed
|
26-32-36m/min
|
Ultra-high-speed production
|
|
Overall dimension
|
27m*8m*1.96m
|
Space-efficient layout design
|
Energy Consumption and Safety
- 380V 3-Phase AC, 0.6MPa Air Pressure
- Fully enclosed guarding with E-Stop system | CE Compliance
